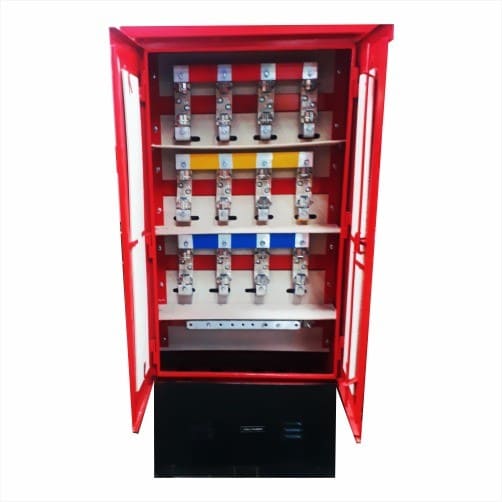

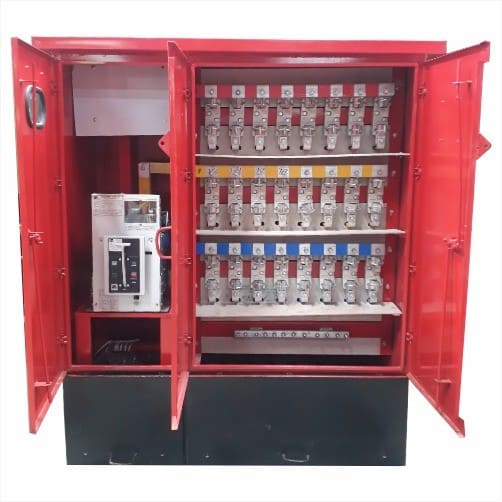

We design & manufacture indoor / fully weather proof outdoor L.T Feeder Pillar Panels of exceptional quality with the necessary required IP protection & as per the client’s specifications. These panels supply power to the lighting loads across an entire wing of commercial/residential buildings or across the streets. These panels come with necessary safety requirements to protect the connected lighting loads.
Specifications:
- Rated insulation voltage up to 1000V
- Main busbars up to 5000A
- Busbar short-circuit withstand capacity up to 100kA for 1 Sec / 70KA for 3 Sec
- Neutral busbars are rated up to 100% of the main busbar and Earth busbars are rated up to 100% of the Neutral busbar
- Designed for Ambient temperature up to 50 °C
- Available for indoor & outdoor applications, up to IP55.
