MCC stands for Motor Control Center. It consists of feeders for motors and blowers. Feeders are designed according to the motor rating. In most of the MCCs, auto/manual provision will be there. With manual provision motors can be operated manually. In auto provision external signal is required to start the motor. The signal is given by the control panel. Indicators for the motor operation also will be present in control panel.

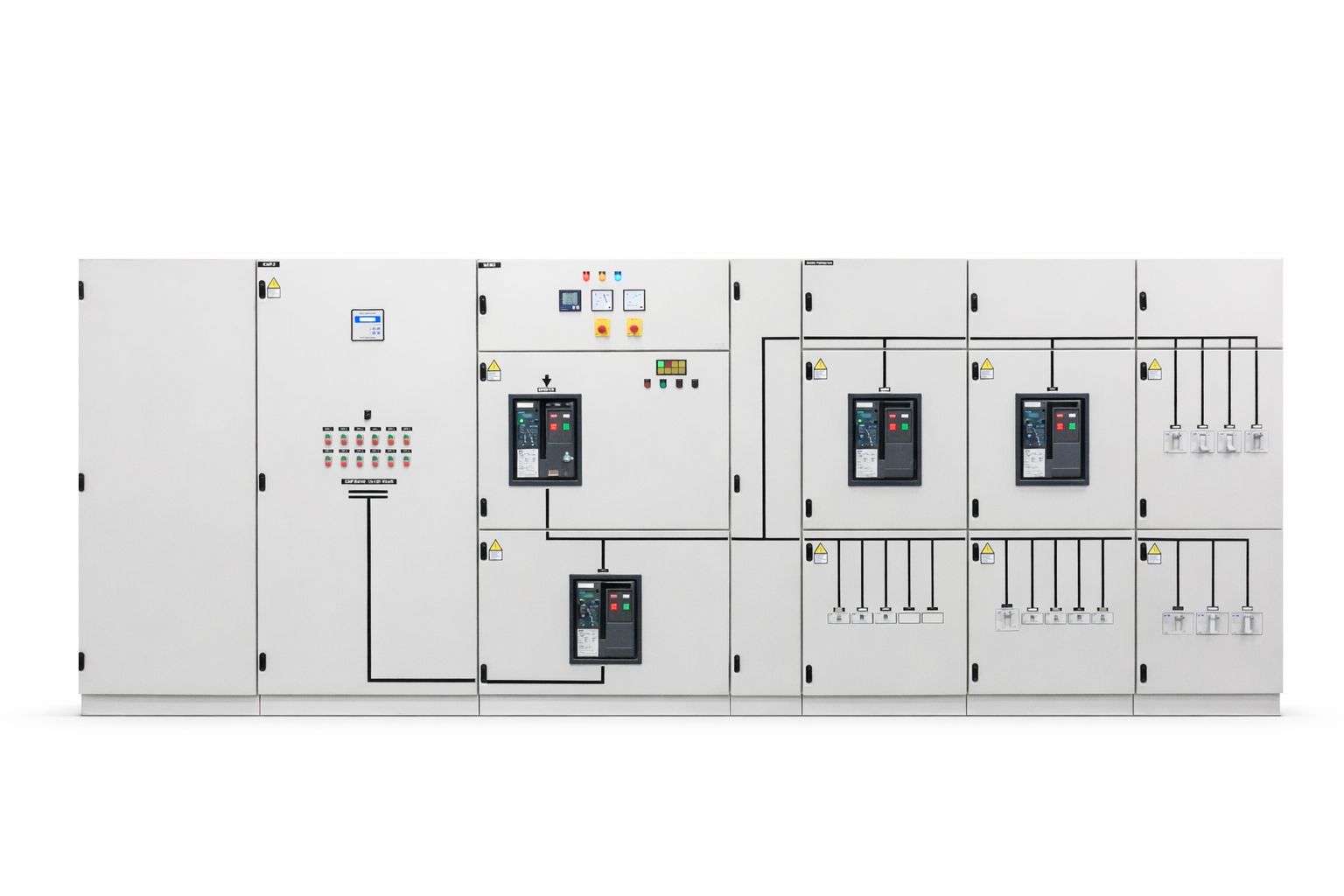

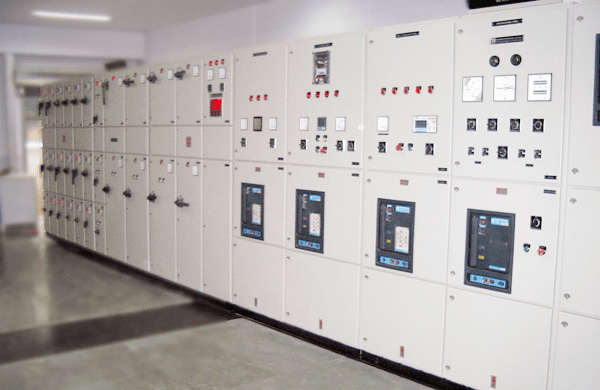

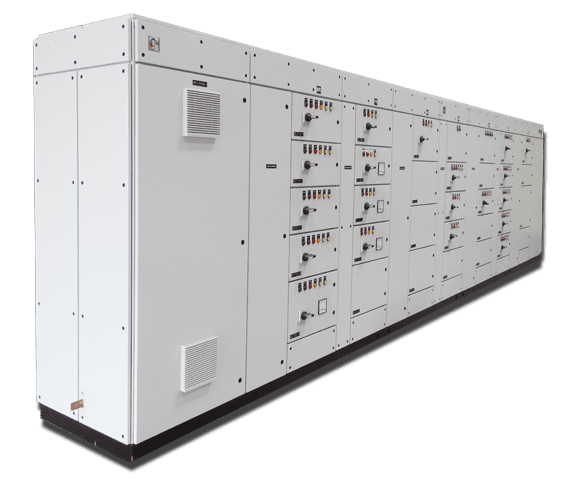

A Motor Control Center (MCC) is an assembly of one or more enclosed sections having a common power bus and principally containing motor control units. Motor control centers are in modern practice a factory assembly of several motor starters. A motor control center can include variable frequency drives, programmable controllers, and metering and may also be the electrical service entrance for the building.
We can also develop Intelligent MCC Panels for Automatic and Semi-Automatic Function as per your requirement.
Specifications:
- Type tested assembly in accordance with IEC 61439
- Rated insulation voltage up to 1000V
- Main busbars are rated up to 5000A
- Busbar short-circuit withstand capacity up to 100kA for 1 Sec / 70KA for 3 Sec
- Neutral busbars rated up to 100% of the main busbar
- Earth busbars rated up to 100% of the Neutral busbar
- Fully compartmentalized design up to Form-4b separation.
- Designed for Ambient temperature up to 50 °C
- Positive interlocks to avoid accidental withdrawal of the modules during operation
- Available for indoor & outdoor applications, up to IP55
- Standard Color, RAL 7035 (other colors on request)
