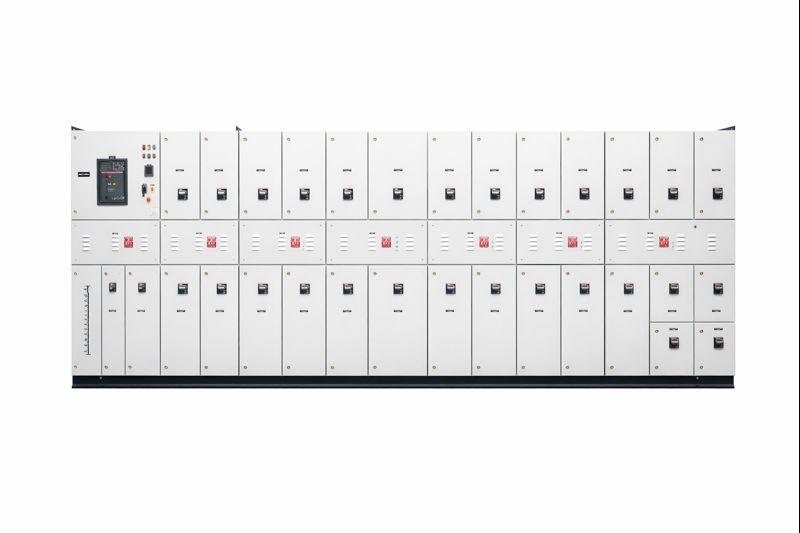

Panels are used to supervise and control the voltage and power of the power system. PCC panels designed and manufactured according to the customer specifications. Best quality switchgear and busbar are used for reliable and efficient performance.
We offer PCC panel with a current carrying capacity up to 5000Amp. We have Type Test Certificate up to 70KA for1sec for short Circuit test form CPRI Bhopal
- Compatible and type tested in accordance with IEC 61439-1 & 2.
- Rated insulation voltage up to 1000V
- Main busbars up to 5000A
- Busbar short-circuit withstand capacity up to 100kA for 1 Sec / 70KA for 3 Sec
- Neutral busbars are rated up to 100% of the main busbar and Earth busbars are rated up to 100% of the Neutral busbar
- Forms of internal separation from Form 1 to Form 4b
- Designed for Ambient temperature up to 50 °C
- available for indoor & outdoor applications, up to IP55
