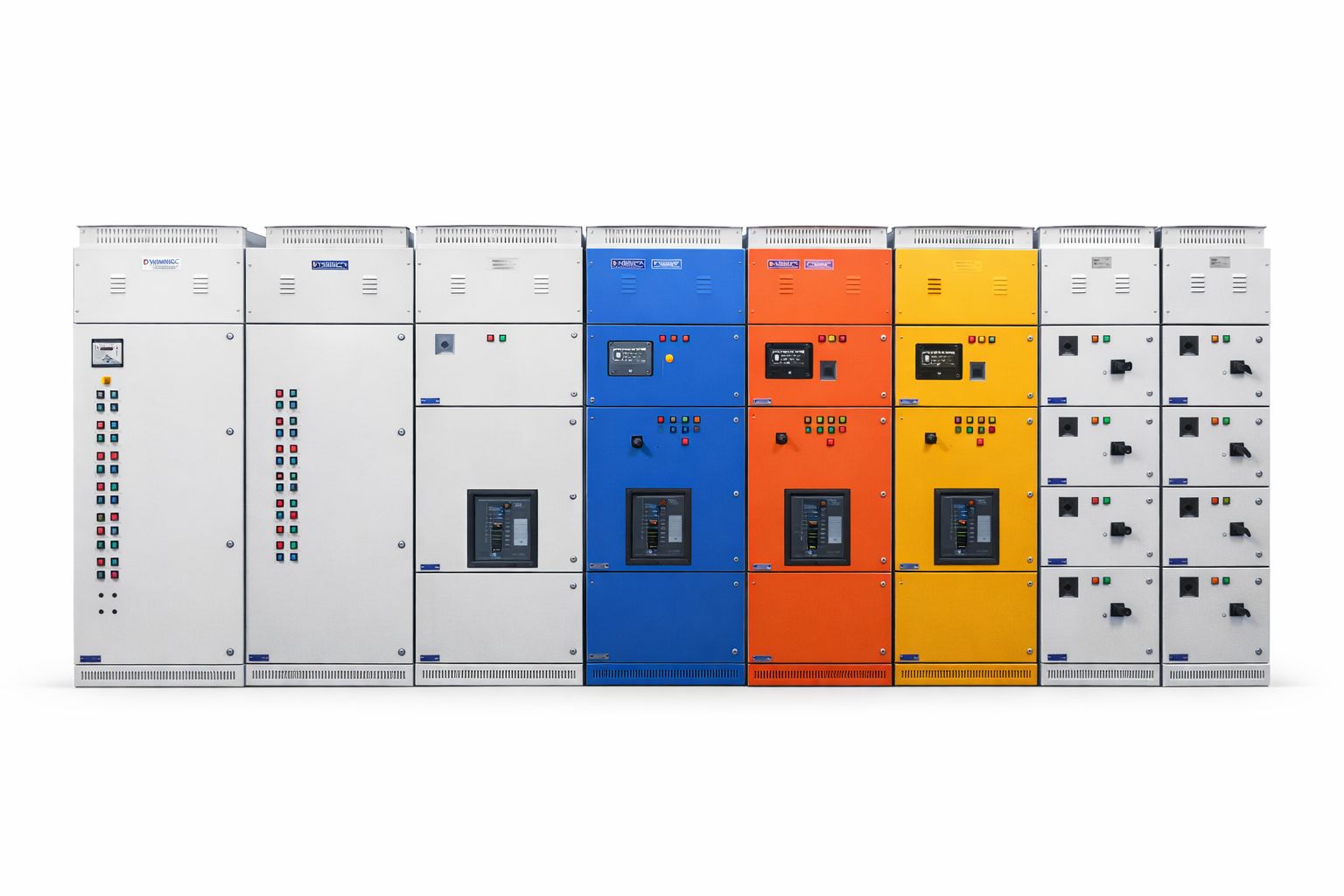

Main L.T panels are considered the heart of the electrical supply system in any installed network of electrical distribution. The secondary side of transformer is connected to the incomer of the Main L.T Panel. Its main purpose is to distribute power efficiently to critical loads and other sub-distribution panels. Usually consists of circuit breakers, isolators and bus couplers. We design, manufacture and supply good quality Main L.T panels in accordance with customer’s specification and at reasonable price with the necessary safety requirements. They can be installed indoors / outdoors of the plant or facilities and have exceptional ability to withstand different climatic condition
- Compatible and type tested in accordance with IEC 61439-1 & 2.
- Rated insulation voltage up to 1000V
- Main busbars up to 5000A
- Busbar short-circuit withstand capacity up to 100kA for 1 Sec / 70KA for 3 Sec
- Neutral busbars are rated up to 100% of the main busbar and Earth busbars are rated up to 100% of the Neutral busbar
- Forms of internal separation from Form 1 to Form 4b
- Designed for Ambient temperature up to 50 °C
- Available for indoor & outdoor applications, up to IP55
