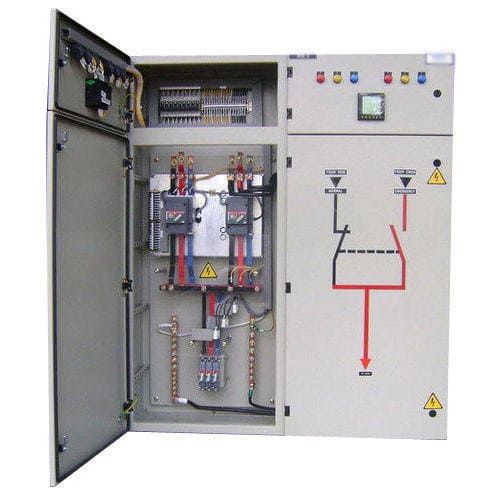

An Automatic transfer switch panel, or ATS panel, is a type of transfer panel used with a diesel generator/Second Source to automatically switch between the mains and generator/Second Source in the event of a power failure. The generator/Second Source will start / stop automatically depending on the mains supply.
A transfer switch (either manual or automatic) is required in every country when installing a generator at premises with a mains supply. It is required by law for good reason. A transfer switch avoids :
- The mains power coming into contact with the generator, which would almost certainly burn out if this happened.
- It stops the generator from back feeding the mains when its failed, endangering the lives of electricity utility workers.
In terms of importance, both the manual and automatic switch perform the same function, however the automatic transfer switch ATS panel does the process automatically, saving time and reducing the power outage length.
Specifications:
- Rated insulation voltage 1000V
- Main busbars rated up to 5000A
- Neutral busbars rated up to 100% of the main busbar, Earth busbars rated up to 50% of the Neutral busbar.
- Designed for Ambient temperature up to 55 °C
- Can be interfaced with the Building Management System (BMS) for monitoring and controlling.
- Can be designed with multiple incomers and bus-couplers.
- Available for indoor & outdoor applications, up to IP55
